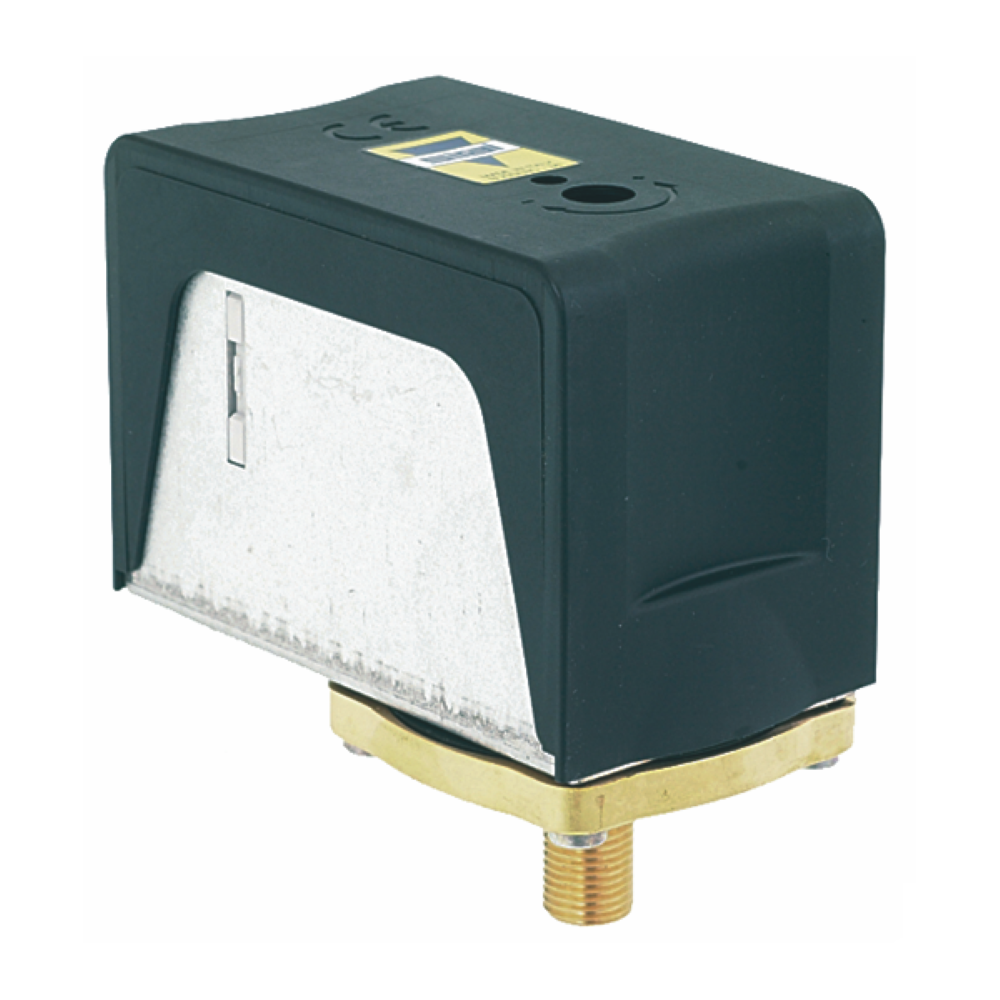

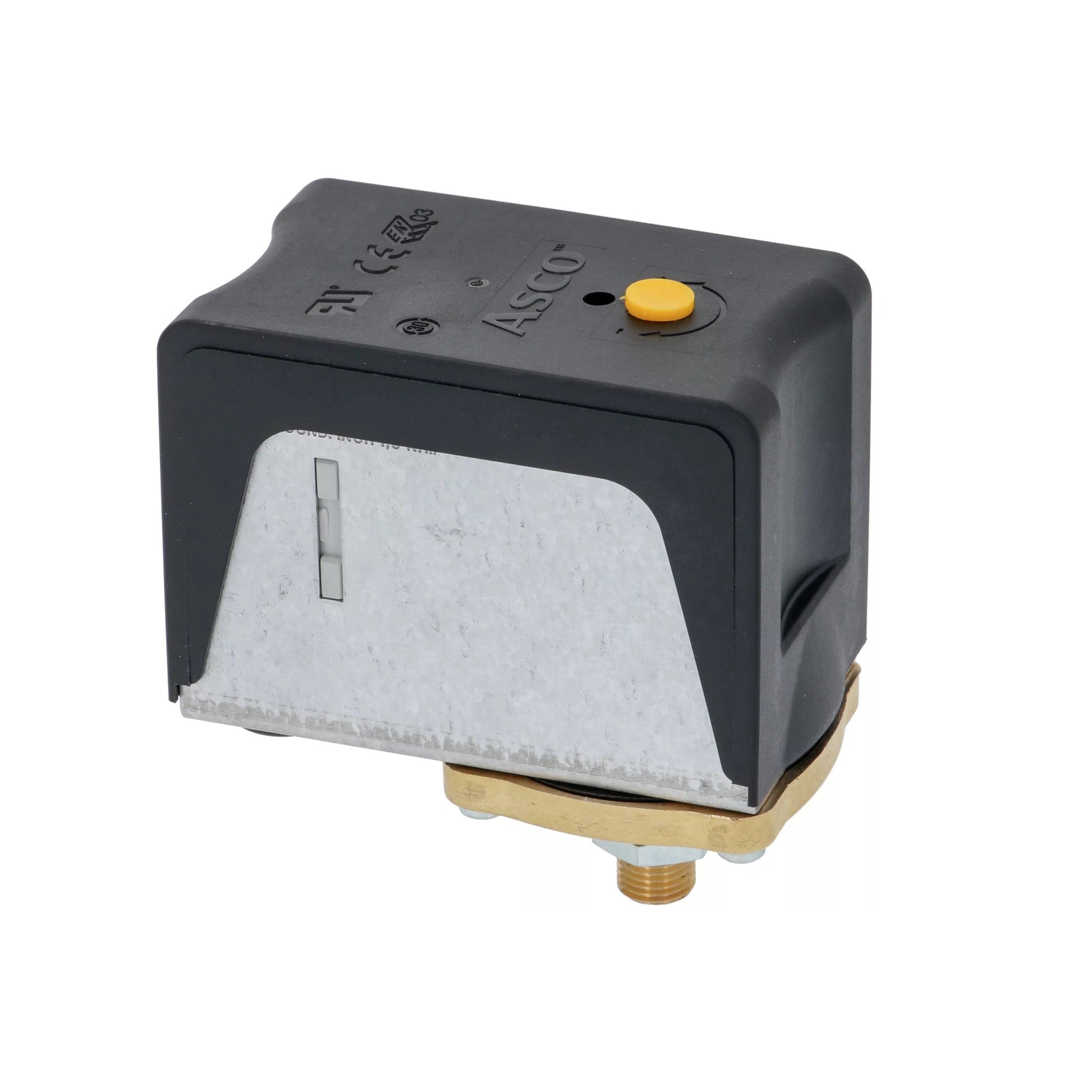

P302 30A Presssurestat
P302 30A Presssurestat
Asco
Regular price
$128.00 CAD
Regular price
Sale price
$128.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Commercial pressurestat for 110~120/220~240V equipment, #P302-6. This is the part that regulates your boiler heating via a diaphragm that expands and contracts as the boiler steam pressure raises and lowers, activating the contacts and sending a signal to the heating element telling it to turn on or off. It is by far the most commonly used pressurestat.
This is a purely mechanical part, and so there's no micro-switch to go out. The diaphrams go bad, and the contacts get fried. But the it is essentially two or three pressurestats, depending on how many wires are used in your unit. There are six connections. When the contacts on the first set of contacts go bad, simply move the two wires over to the next available unused set.
CE-SEV-ASE-UL approved
Connection ISO 228 G 1/4"M for pipe ø 4x6 mm
Adjustable scale 0.5÷1.4 bar
Fixed differential 0.15 (± 0.06) bar
Fluid max. temperature :140°C
Max. load contacts 220V 7KW (30A)
400V 12KW (30A)
Cross-references:
| Part number | Manufacturer |
| 20150 | ASTORIA CMA |
| 7433001 | BEZZERA |
| 5006010 | BFC |
| 00630.4.00.08 | BRASILIA |
| 000399 | BRUGNETTI-AURORA |
| 95.00275 | CARIMALI |
| 531-190-310 | CIMBALI |
| 00049035 | ELEKTRA |
| 558 | ESPRESSO RESOURCE |
| 60000000 | EXPOBAR |
| 60000005 | EXPOBAR |
| 2231116597 | FAEMA |
| 2231131900 | FAEMA |
| 531190310 | FAEMA |
| 5.2.000.0680 | FIEMMA RST |
| A2100050 | FIORENZATO C.S. |
| A2100314 | FIORENZATO C.S. |
| FC1669 | FRACINO |
| 07935703 | FUTURMAT-ARIETE |
| 12001274 | GAGGIA |
| WGADM0541 | GAGGIA |
| 07935703 | GAGGIA SPAGNA (SPAIN) |
| 1160800015 | GRIMAC |
| 1160800016 | GRIMAC |
| A2100314 | GRIMAC |
| GR814 | GRIMAC |
| GR815 | GRIMAC |
| GRC615 | GRIMAC |
| V070 | GRIMAC |
| 07935703 | ITALCREM |
| 10060660 | LAVAZZA |
| 10066203 | LAVAZZA |
| 07935703 | MAIRALI |
| L270 | MARZOCCO |
| 20150 | MCE |
| 09200006 | NUOVA SIMONELLI |
| D20150 | ORCHESTRALE |
| 451301 | PAVONI |
| P7012 | PROFITEC |
| 34200110 | RANCILIO |
| 34200111 | RANCILIO |
| 9005050 | RENEKA |
| GR814 | RICAMBI GARDOSI |
| GR815 | RICAMBI GARDOSI |
| GRC615 | RICAMBI GARDOSI |
| V070 | RICAMBI GARDOSI |
| 5006010 | ROYAL |
| SVTMP010 | SAB ITALIA |
| 1200127 | SAECO |
| WGADM0541 | SAECO |
| 108007 | SAN MARCO |
| 10602010 | SANREMO |
| 10602010A | SANREMO |
| C-0455 | SCALA |
| 01101 | SPAZIALE |
| 02623 | SPAZIALE |
| ELETPRE | VIBIEMME |
| 09200006 | VICTORIA ARDUINO |
| 07935703 | VISACREM |
| W10440 | WEGA |
| WY20150 | WEGA |
