Sirai P203T01 20A Presssurestat
Sirai P203T01 20A Presssurestat
Sirai
Regular price
$134.00 CAD
Regular price
Sale price
$134.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

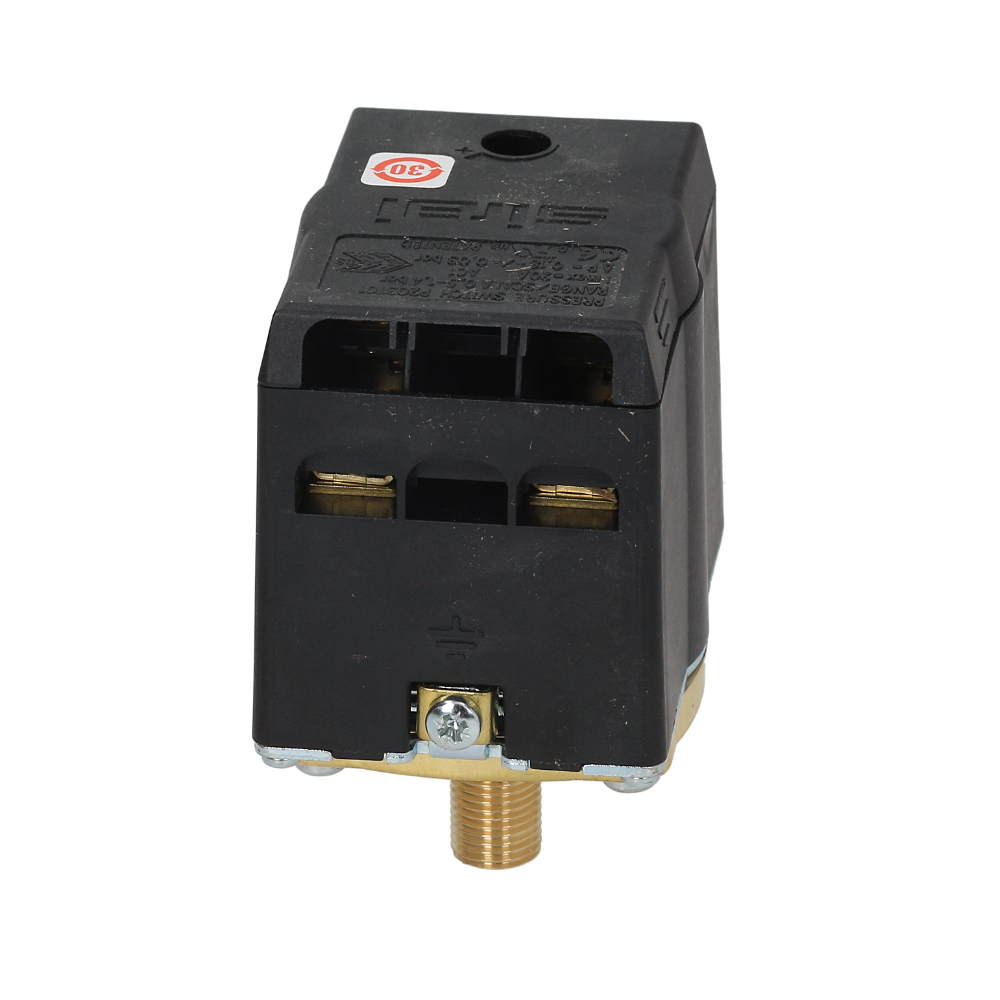

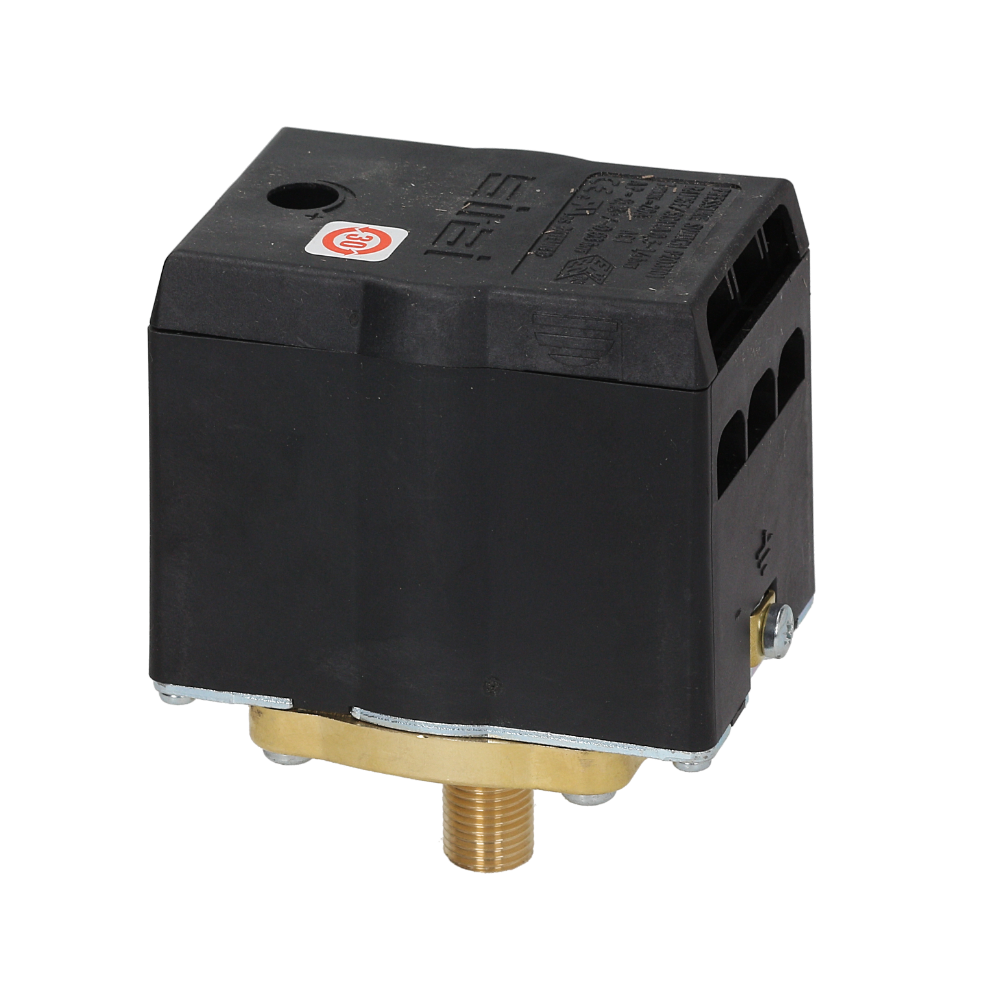

Pressurestat for 110~120/220~240V equipment, Sirai P203T01. This is the part that regulates your boiler heating via a diaphragm that expands and contracts as the boiler steam pressure raises and lowers, activating the contacts and sending a signal to the heating element telling it to turn on or off.
CE-cURus approved
ISO 228 G connection 1/4"M for pipe ø 4x6 mm
adjustable scale 0.5÷1.4 bar
fixed differential 0.18 (± 0.03) bar
fluid max. temperature :140°C
max contact load 20A
2 poles
Cross-references:
| Part number | Manufacturer |
| P203T02 | Asco |
| 1320800 | LF |
| P203T1B0 | Sirai |
| P203T01 | Sirai |
| A199904296 | Rocket |
