Rhino Spinjet Vented Screw Cap - 3 Pack

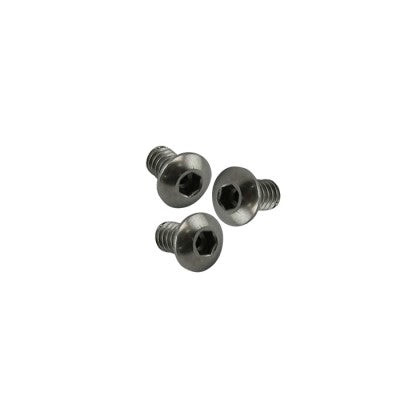

This is a replacement stainless steel vented cap screw for the Rhino Coffee Gear pitcher rinser Spinjet valve.

Specifications:

• Diameter: 8mm
• Length: 10mm
• Thread: G3/16

Why the Vent Hole Matters
The Spinjet valve cap screw isn't a standard fastener — it has a small hole drilled axially through its centre, and that vent is functional. It allows pressure equalisation within the Spinjet valve mechanism during actuation, which is what enables the valve to reset correctly after each press. Without the vented screw, or with a standard unvented replacement, the valve mechanism doesn't complete its cycle properly. This is a known service issue: technicians who weren't aware these pre-drilled screws were available as a replacement part have resorted to attempting to drill the vent hole themselves — a time-consuming process that typically ruins the screw. Buying the correct pre-drilled replacement is the straightforward solution.

Specifications and Compatibility
Each screw is stainless steel, 8mm in diameter, 10mm in length, with a G3/16 thread. The pack contains three screws. SKU: RHVCS-SP-3PK. These screws are compatible with the Rhino Spinjet Upgrade valve (RHSPINUPGRADE). If you have a complete Spinjet pitcher rinser — RHPR600-S, RHPR300-S, or RHPR150-S — and need internal valve maintenance parts beyond the screw, the Rhino Spinjet Valve Service Gasket Kit (RHSPVSK-01) covers the spring, piston gasket, and O-rings for those models.

Other Spinjet Parts at Coffee Addicts
For a complete Spinjet valve service kit, the Rhino Spinjet Valve Service Gasket Kit is the companion part. The Rhino Spinjet Wobble Washer (suits RHSPINSET, RHPR600-S, RHPR300-S) is also available separately. For the Spinjet valve itself as a retrofit upgrade for a standard rinser, the Rhino Spinjet Upgrade (RHSPINUPGRADE, $93.50) and the Rhino Spinjet Spray Assembly & Actuator Plate are both stocked at Coffee Addicts.
