Rhino Spinjet Pitcher Rinser 300mm
Rhino Spinjet Pitcher Rinser 300mm
Rhino Coffee Gear
Regular price
$435.00 CAD
Regular price
$435.00 CAD
Sale price
$435.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Get a faster, more effective clean and use up to 30% less water with the Spinjet!

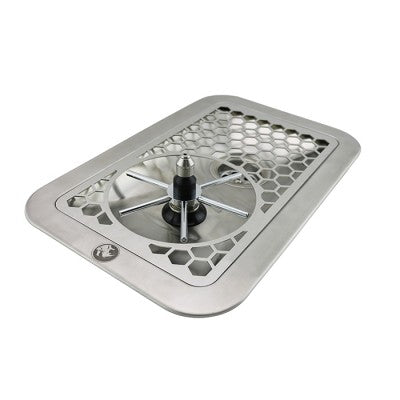

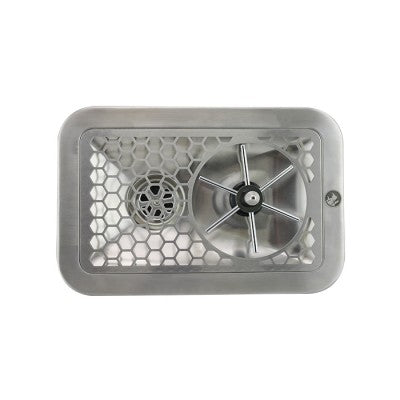

The Rhino Coffee Gear RHPR300-S has been designed to fit in the bench of cafes, restaurants, coffee bars, and juice bars. This vessel rinser features a new honeycomb drain tray and a new Actuator Star design, which both help to prevent liquid build-up. It also includes a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean. Sitting at 300mm in length, the RHPR300-S fits multiple milk pitchers and blenders comfortably, making it perfect for all busy hospitality environments.
Features:
Effective mechanical cleaning

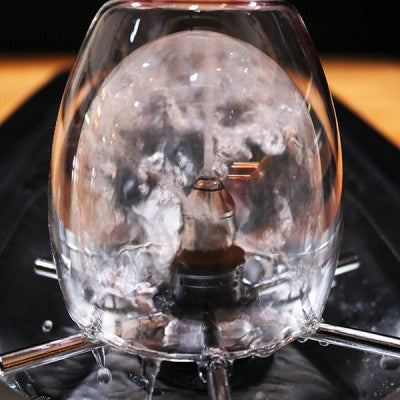

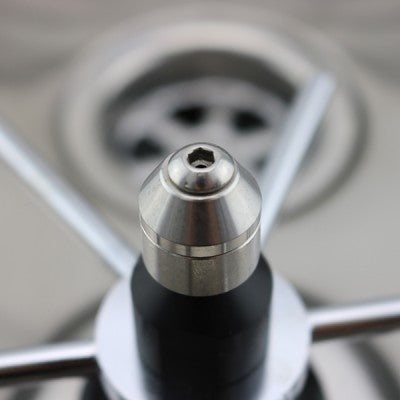

The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.
Superior drainage

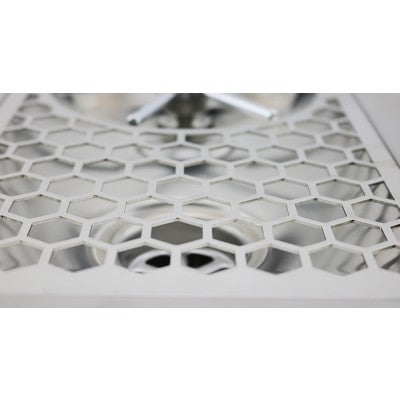

The honeycomb grate design minimizes the surface area of the drain tray, reducing static build-up of liquids and making cleaning easy.
The low profile body is optimally sloped and angled to ensure effective removal of liquids, reducing common odors caused from static waste.
A large drain outlet and wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.
Larger vessel option

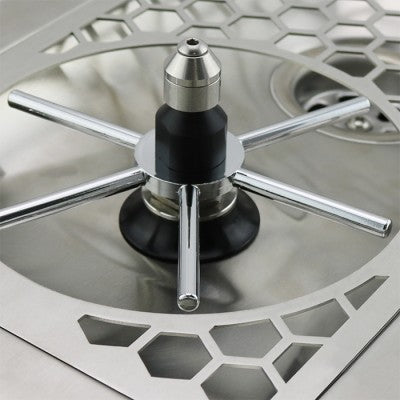

The Actuator Star diameter allows both small and larger vessels to be cleaned easily.
An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers,
milkshake cups, and popular blender jugs such as Blendtec® and Vitamix®.
Specifications
- Dimensions (approx): 238mm (W) x 300mm (L) 85mm (D) approx. (9.38 x 11.8 x 3.35 in) (Depth from drain elbow to top of bench.)
- Materials: Stainless Steel
- Drain Hose: 25mm/1" size
- Flow Rate: 120 lph (31.7 gallons per hour) approx.
Please Note:
- It is recommended that a Pressure Limiting Valve (PLV, also known as a Pressure Restricting Valve or Water Pressure Regulator) is used when installing on mains water line.
- Do not cut out bench top surfaces prior to receiving your rinser: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical vessel rinser on-hand prior to cutting into bench top surfaces. Coffee Addicts does not take responsibility for errors concerning installation and provides the sizes and dimensions as a layout guide only.
- The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
How to connect the drain tray and hoses:
How to fix the o-ring to the activation piston:
How to swap the plug and spray mechanism:
Spinjet Cleaning in a Compact In-Bench Footprint
The Rhino Spinjet Pitcher Rinser 300mm (RHPR300-S) is the mid-length in-bench vessel rinser in the Rhino Spinjet range — 300mm long where the RHPR600-S runs 600mm, both sharing the same 238mm width and Spinjet valve technology. It's designed for cafés, restaurants, coffee bars, and juice bars where bench space is tighter or a single-station rinser is sufficient: the 300mm length comfortably accommodates multiple milk pitchers and extends to blender jugs and plungers with the included extension rod and larger actuator. The Spinjet valve is the central performance feature — it sprays and spins simultaneously rather than directing a fixed upward spray, creating a rotating mechanical cleaning action that removes stubborn residues from vessel walls with each press. Up to 30% less water per rinse cycle compared to standard valves.
Honeycomb Drain, Actuator Star, Low-Profile Body
The RHPR300-S shares all drainage and structural features with the 600mm model. The honeycomb grate minimises the drain tray contact surface, reducing static liquid build-up and making the tray faster to clean. The low-profile body is sloped and angled for natural liquid drainage away from the centre, with a wide grate-free opening near the drain for disposing larger liquid volumes quickly. The Actuator Star accommodates both small pitchers and larger vessels, and scales further with the included blender adapter — extension rod and larger actuator plate suited to Blendtec®, Vitamix®, and similar blender jugs. Flow rate: approximately 120 lph (31.7 gallons per hour). Drain hose: 25mm/1" diameter.
Installation Notes — Read Before Cutting
The RHPR300-S requires an in-bench installation. Do not cut bench top surfaces before the physical unit is on-site — Rhino strongly recommends using the actual rinser as the template for marking, as slight manufacturing variations can affect fit. Minimum clearance under the bench: 150mm for basic water and drain connection, including drain hose fall. A Pressure Limiting Valve (PLV) is recommended when connecting to mains water. The Rhino Spinjet Valve Service Gasket Kit (RHSPVSK-01) is available separately at Coffee Addicts for routine valve maintenance. For a longer bench run accommodating multiple pitchers simultaneously, the Rhino Spinjet Pitcher Rinser 600mm (RHPR600-S) is the extended-length alternative.
