Rhino Compact Spinjet Pitcher Rinser
Rhino Compact Spinjet Pitcher Rinser
Rhino Coffee Gear
Regular price
$320.00 CAD
Regular price
$320.00 CAD
Sale price
$320.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Get a faster, more effective clean and use up to 30% less water with the Rhino Spinjet!
The Rhino Coffee Gear RHPR150-S has been designed to fit in the bench of cafes, restaurants, coffee bars, and juice bars.
This vessel rinser features a new honeycomb drain tray and a new Actuator Star design, which both help to prevent liquid build-up. It also includes a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean.
Sitting at 150mm in length, the RHPR150-S fits multiple milk pitchers and blenders comfortably, making it perfect for all busy hospitality environments.
Features:
Effective mechanical cleaning

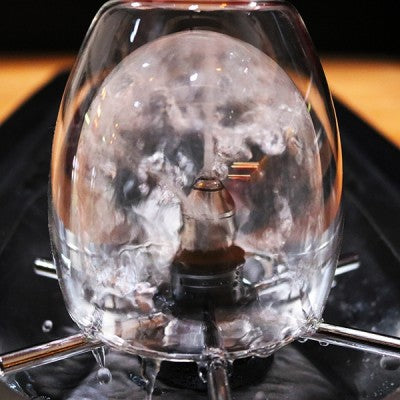

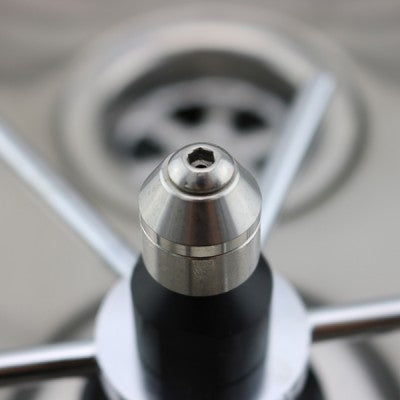

The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.
Superior drainage
The honeycomb grate design minimizes the surface area of the drain tray, reducing static build-up of liquids and making cleaning easy.
The low profile body is optimally sloped and angled to ensure effective removal of liquids, reducing common odors caused from static waste.
A large drain outlet and wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.
Larger vessel option
The Actuator Star diameter allows both small and larger vessels to be cleaned easily.
An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit.
This kit includes an extension rod and a larger actuator to suit plungers,
milkshake cups, and popular blender jugs such as Blendtec® and Vitamix®.
Specifications
- Dimensions (approx): 175mm (W) x 159mm (L) x 62mm (D) approx. (Depth with fittings: 110mm)
- Materials: Stainless Steel
- Drain Hose: 25mm/1" size
- Flow Rate: 120 lph (31.7 gallons per hour) approx.
Please Note:
- It is recommended that a Pressure Limiting Valve (PLV, also known as a Pressure Restricting Valve or Water Pressure Regulator) is used when installing on mains water line.
- Do not cut out bench top surfaces prior to receiving your rinser: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical vessel rinser on-hand prior to cutting into bench top surfaces. Coffee Addicts does not take responsibility for errors concerning installation and provides the sizes and dimensions as a layout guide only.
- The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
How to connect the drain tray and hoses:
How to fix the o-ring to the activation piston:
How to swap the plug and spray mechanism:
Spinjet Performance in the Smallest Bench Footprint

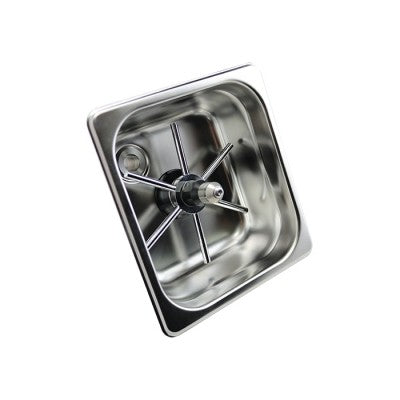

The Rhino Compact Spinjet Pitcher Rinser (RHPR150-S) is the most compact in-bench option in the Rhino Spinjet range — at 175mm wide and 159mm long, it's the choice for tight bench runs, single-station setups, and cafés where a 300mm or 600mm rinser would consume too much bench cut-out. Despite the reduced footprint, it carries the same core technology as the larger Spinjet models: the Spinjet valve sprays and spins simultaneously, creating a rotating mechanical cleaning action that removes stubborn milk residue, coffee grounds, and tea leaves that a standard static spray valve leaves behind. Up to 30% less water per rinse cycle compared to conventional rinser valves. It fits multiple milk pitchers comfortably and extends to blender jugs and plungers with the separately available Blender Adapter Kit (extension rod and larger actuator, suits Blendtec®, Vitamix®, and similar).
Honeycomb Drain, Actuator Star, Sloped Body
All three Spinjet drainage features are present in the compact format. The honeycomb grate minimises the drain tray contact surface area, reducing static liquid build-up and simplifying cleaning. The low-profile body is sloped and angled for natural liquid drainage away from the centre, with a wide grate-free opening near the drain for quickly disposing larger volumes. The Actuator Star accommodates both small pitchers and larger vessels in a single press. Dimensions: approximately 175mm (W) x 159mm (L) x 62mm (D), with 110mm depth once fittings are attached. Flow rate: approximately 120 lph (31.7 gallons per hour). Drain hose: 25mm/1" diameter.
Installation Notes — Read Before Cutting
The RHPR150-S requires an in-bench installation. Do not cut countertop surfaces before the physical unit is on-site — Rhino recommends using the actual rinser as the template for marking, as slight manufacturing variations can affect fit. Minimum clearance under the bench: 150mm for basic water and drain connection, including drain hose fall. A Pressure Limiting Valve (PLV) is recommended when connecting to mains water. Three installation videos are linked on this page covering drain tray and hose connection, O-ring fitting, and spray mechanism swap. The Rhino Spinjet Valve Service Gasket Kit (RHSPVSK-01) is available for routine valve maintenance — note this kit suits RHPR150-S. For a longer bench run, the Rhino Spinjet Pitcher Rinser 300mm (RHPR300-S) and 600mm (RHPR600-S) are also available at Coffee Addicts.
