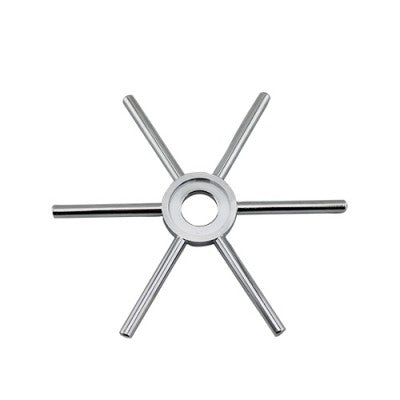

Rhino Rinser Actuator Star

The Rhino Coffee Gear Actuator Star is a replacement actuator for any existing Rhino Coffee Gear Pitcher Rinser.

Diameter: 135mm

Material: Stainless Steel

What the Actuator Star Does
The actuator star is the plate on top of the pitcher rinser that the vessel presses down onto to trigger the spray valve — when you press a milk pitcher or plunger down onto the rinser, it's the actuator star that depresses and activates the water flow. Over time in a high-use café environment, the actuator can wear, deform, or crack, and when it does the rinser stops actuating cleanly. This replacement part restores correct function without replacing the entire rinser unit. At 135mm in diameter and made from stainless steel, it fits any existing Rhino Coffee Gear Pitcher Rinser and is the standard actuator across the non-Spinjet rinser range.

Compatibility and Sizing
This Actuator Star is 135mm in diameter — sized to accommodate the standard range of milk pitchers, glasses, and jugs used in café and bar environments. The 135mm plate provides a stable contact surface for most vessel bases without being so large it creates fitment issues in the rinser tray. This part suits all Rhino Coffee Gear Pitcher Rinsers. Note that the Spinjet rinsers (RHPR600-S, RHPR300-S, RHPR150-S) include their own Actuator Star design as part of the integrated Spinjet assembly — if you have a Spinjet model and need rinser parts, the Rhino Spinjet Valve Service Gasket Kit (RHSPVSK-01) covers the Spinjet-specific internal components.

Other Rhino Rinser Spare Parts at Coffee Addicts
For a complete rinser maintenance setup, Coffee Addicts also stocks the Rhino Rinser Drain Assembly (suits all Rhino rinsers with a 70mm drain opening), the Rhino Spinjet Wobble Washer (Spinjet valve models only: RHSPINSET, RHPR600-S, RHPR300-S), and the Rhino Pitcher Rinser Bench Gasket (suits RHPR300-S and RHPR600-S). For a full rinser replacement rather than a spare part, the Rhino Pitcher Rinser 600mm, Spinjet Pitcher Rinsers, and Compact Spinjet are all available in the Coffee Addicts rinsers range.
